TECHNOLOGY TO THE POINT
HAITIAN JUPITER III SERIES
Generation III of the Jupiter series has significant improvements over the previous one. Haitian’s extensive experience in research and development of double sinker solutions over the past two decades has enabled it to incorporate new features and benefits that ensure good performance and part quality.
Thanks to its flexibility of combining clamping unit with various injection unit possibilities, the Jupiter III series can be selected for a specific application or generic use.
Following the ideology of technology to the point, the new generation of Jupiter offers a wide variety of configurations in a very compact footprint, which maximizes the usable space in the plant for the benefit of the customer.
No matter the length of parts such as garbage cans or logistic boxes, or if they are precision parts for the automotive industry, or high-tech parts with high quality finishes as in the white goods industry, the Jupiter III series offers the best solution for this type of industry.
JE III SERIES
TECHNOLOGY TO THE POINT
- Available from 4,500 to 66,000 kN
- Short drying cycles
- Large mold space, compact machine design
- Energy-efficient servo-technology
- Fast response time and high positioning accuracy (± 0.05%)
- KEBA control technology
-
Intelligent motion control for short dry cycles
QUICK CHECK
DRIVE TECHNOLOGY
Servo-hydraulics
CONTROL SOFTWARE
KEBA
CLOSING FORCE
4,500 – 66,000 kN
LOCKING SYSTEM
Double Sinker
Max. DISTANCE BETWEEN BARS
3,200 x 2,600 mm
INJECTION VOLUME
792-80,170 cm³
Space-saving two-platen technology
 |
Extended opening and ejection stroke for various application needs and a larger mold area. |

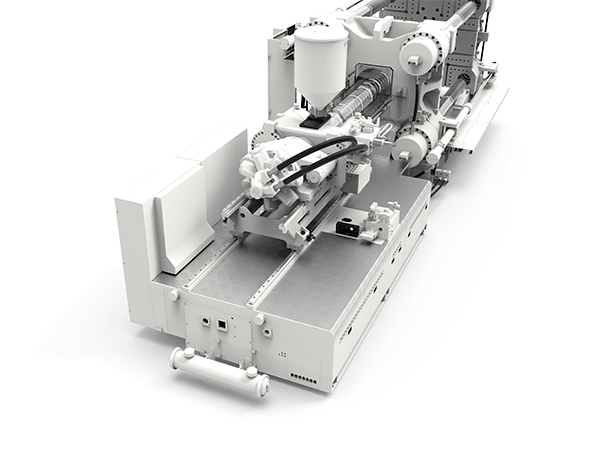

New injection unit
 |
Linear guides for lower friction and energy consumption resulting in more precise movements. Free selection between differential and non-differential injection function, providing greater injection molding capability and extending the scope of the process. |
Quick and balanced locking mechanism
 |
The four short-stroke clamping cylinders on the fixed platen allow quick adjustment of the clamping force in the mold. Real-time monitoring via pressure transducer contributes to the high repeatability of clamping force. |
Parallel locking nut
 |
Parallel operation of the locknut ensures fast and accurate response. |
Movable platen support
 |
The high rigidity moving platen support device and the guiding mechanism at the bottom and side of the machine bed ensure the precision of the moving platen during the loading of heavy molds. |
